MX-0808-KIT-V2

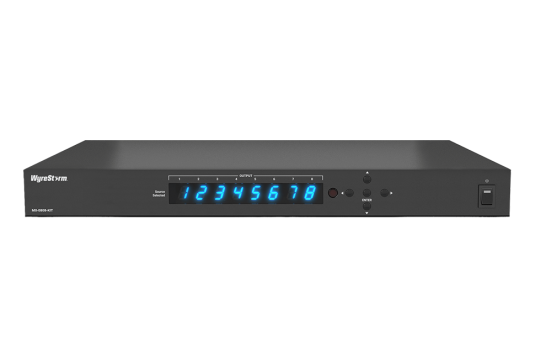

Ref: WYRES-MX0808KITV2 EAN: 814303016336The MX-0808-KIT v2 gets a make over, sharing many of the same powerful features of version 1, but with a vision of lite commercial installations in mind. Offering the same transmissions of 4K UHD up to 35m/115ft, but now up to 8 HDBaseT outputs with included receivers. Additionally, version 2 is equipped with 4 mirrored outputs, which can be paired with any of our HAOC hybrid optical HDMI cables to connect to 4 additional screens. Also new and fitting are 4 balanced analog audio outputs 2ch support to connect to ceiling/overhanging speakers or to an audio amplifier. Lastly, still enjoy the same great features of version 1, including CEC triggering, A/V mute and standby mode to extend the life of the matrix during downtime.
Features
- Inputs: 8x HDMI: 19-pin type A;1x HDBT: 8-pin RJ-45 Female

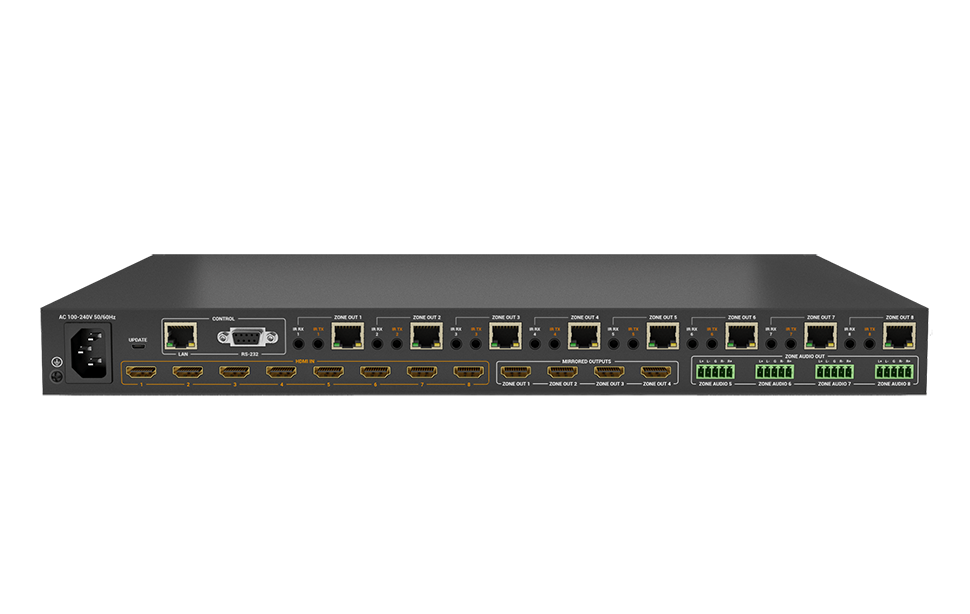

Outputs: 8x HDBT: 8-pin RJ-45 Female; 4x 5-pin Balanced Analog Audio; 1x HDMI: 19-pin type A
Output Video Encoding: HDBaseT Class B
Encoding Data Rate: 9.2Gbps
End to End Latency: 10µs (micro seconds)
Audio Formats: HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
Analog Output: 2ch PCM
Video Resolutions (Max): 1920x1080p @60Hz 16bit; 3840x2160p 10bit 4:2:0 HDR; 3840x2160p @30Hz 8bit 4:4:4; 3840x2160p @60Hz 8bit 4:2:0
For more information check the TechSheet.
