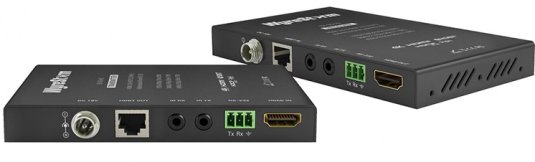

EX-35-H2
Ref: WYRES-EX35H2 EAN: 814303013601For extension of 4K UltraHD and HDR transmissions over medium distances in residential or commercial applications, the EX-35-H2 features the Class B HDBaseT platform with full HDR support to distribute 4K UHD HDR, audio, bidirectional IR/RS-232 and two-way PoH to remotely power either transmitter or receiver up to 35m/115ft or 1080p up to 70m/230ft.
Price on request
I'm interested
Artigo disponível
Compare
Share
Features
- Inputs Transmitter: 1x HDMI 19-pin type A | Receiver: 1x HDBaseT 8-pin RJ-45 female
- Outputs Transmitter: 1x HDBaseT 8-pin RJ-45 female | Receiver: 1x HDMI 19-pin type A
- Audio Formats 2ch PCM | Up to DTS-X and Dolby Atmos
- Video Resolutions (Max)
- HDMI
- 1920x1080p @60Hz 12bit (15m/50ft) | 16bit (7m/23ft)
- 3840x2160p @30Hz 4:4:4 8bit (7m/23ft) | @24Hz 4:2:0 HDR 10bit (3m/9.8ft)
- 4096x2160p @60Hz 8bit 4:2:0 (7m/23ft) | @60Hz 8bit 4:4:4 (7m/23ft)
- Cat6
- 1920x1080 @60Hz 12bit (70m/230ft) | @60Hz 16bit (35m/115ft)
- 3840x2160p @30Hz 4:4:4 8bit (35m/115ft) | @24Hz 4:2:0 HDR 10bit (35m/115ft)
- 4096x2160p @60Hz 4:2:0 8bit (35m/115ft)
- Cat6a/7
- 1920x1080 @60Hz 12bit (70m/230ft)
- 3840x2160p @30Hz 4:4:4 8bit (70m/230ft) | @24Hz 4:2:0 HDR 10bit (70m/230ft)
- 4096x2160p @60Hz 4:2:0 8bit (70m/230ft
For more information check the TechSheet.
