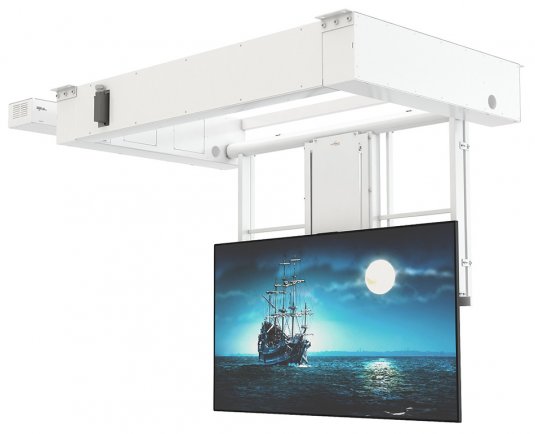

FPLCV2 42-50+LM+LOCK
Ref: UNITE-FPLCV2425LMLFPLC V2+LM series of flat panel ceiling lift mechanisms offers vertical lowering motion, for applications with increased floor-ceiling distance. Maximum safety is achieved in closed position with the electric safety locking system. Its silent operation and smooth motion make this series an elegant and reliable solution!
€ 11.716,98(VAT included)
Sujeito a confirmação de stock
Compare
Share
Features
- Maximum flat panel dimensions (WxHxD) = 1280x755x90mm
- Maximum load (flat panel+ceiling cover): 45kg
- Lift dimensions (WxHxD): 1600x260x1025mm, excluding control box
- Swiveling angle: 90degrees
- Vertical lowering distance up to : 310mm
- Safety locking system in closed position for maximum safety in application
- Mounting flat panel holes pattern up to 800x400mm
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 110-230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF or IR remote control, RS 232 or 485 ports
For more information check the TechSheet.
