FPLCV2 SLIM 52-60+R+LOCK

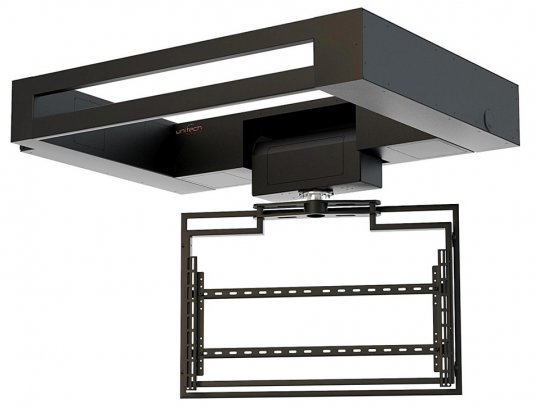

Ref: UNITE-FPLCV2SLI5RL EAN: UNITE-FPLCV2SLI5RLFPLC V2 Slim+R series of flat panel ceiling lift mechanisms completes the series of elegant and slim ceiling mechanism with new models that comprise rotation ability and excellent utility! The model suitable for screens up to 65" provices maximum utility and safety, with the safety locking system in closed position. FPLC V2 Slim+R models provide swiveling at 90 degrees from ceiling and rotation ability up to ±180degrees (full rotation to both directions)! Model: FPLCV2SLIM52-60+R+LOCK
€ 18.069,93(VAT included)
Sujeito a confirmação de stock
Compare
Share
Features
- Maximum flat panel dimensions (WxHxD) = 1480x900x90mm
- Maximum load (flat panel+ceiling cover) 35kg
- Lift dimensions (WxHxD) 1820x220x1525mm (excluding control box)
- Maximum swiveling angle 90degrees
- Rotation ability (CW & CCW) +/-180degrees both ways : 180o CW & 180o CCW
- Mounting flat panel holes pattern up to 800x600mm
- Locking system in closed position for maximum safety of application
- Standard color of metallic parts: powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 110-230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF or IR remote control, RS 232 or 485 ports
For more information check the TechSheet.
