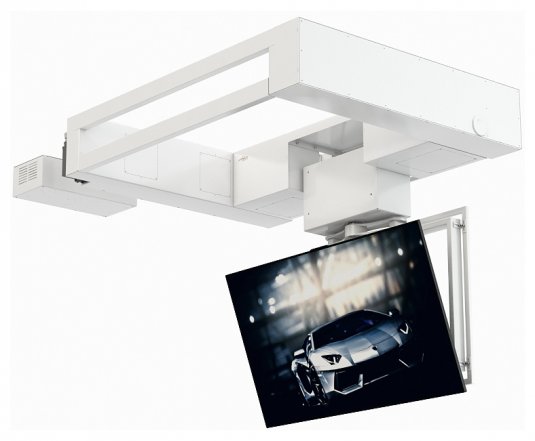

FPLCV2 SLIM 52-60+R+TILT+LOCK
Ref: UNITE-FPLCV2SLI5RTThe FPLCV2+R best selling series of flat panel ceiling lifts with full rotation, can be also equipped with tilt ability, up to 30degrees! Providing maximum utility and best viewing angle for different positions, FPLCV2+R+TILT series is the optimum elegant solution!
€ 18.493,05(VAT included)
Sujeito a confirmação de stock
Compare
Share
Features
- Maximum flat panel dimensions (WxHxD) = 1480x900x90mm
- Maximum load (flat panel+ceiling cover): 35kg
- Lift dimensions (WxHxD): 1820x250x1525mm, excluding control box
- Swiveling angle: 90degrees
- Rotation ability (CW & CCW) ±180degrees both ways : 180o CW & 180o CCW
- Flat panel electric tilt ability up to 30degrees
- Mounting flat panel holes pattern up to 800x600mm
- Safety locking system in closed position for maximum safety in application
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 110-230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF or IR remote control, RS 232 or 485 ports
For more information check the TechSheet.
