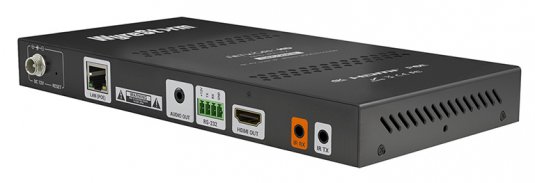

NHD-400-RX
Ref: WYRES-NHD400RX EAN: 814303013649WyreStorm brings stunning 4K HDR video, 4K/2K auto-scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series NHD-400-RX streaming decoder. Used in conjunction with an NHD-400-TX encoder, the NHD-400-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16x16 with portrait and image flipping.
Price on request
I'm interested
Artigo disponível
Compare
Share
Features
- Inputs NHD-400-TX: HDMI 2.0a | NHD-400-RX: HDMI 2.0a
- Outputs NHD-400-TX: HDMI 2.0a (thru) | NHD-400-RX: HDMI 2.0a, 3.5mm Mini-Jack
- Output Video Encoding JPEG-2000
- Encoding Data Rate Max: 850Mbps - Typical: 50~300Mbps
- End to End Latency
- 1 frame latency or less in most cases:
- 4K30Hz up to 30fps = 33ms
- 1080p up to 60fps = 16ms
- 720p up to 60fps = 16ms
- 1080i up to 30fps = 33ms
- Audio Formats 2 Ch LPCM & 8 Ch LPCM | 5.1 Ch LPCM (Dolby, Dolby Pro Logic, DTS) |
- 7.1 Ch LPCM (Dolby TrueHD, DTS-HD, Dolby Atmos, DTS:X)
For more information check the TechSheet.
