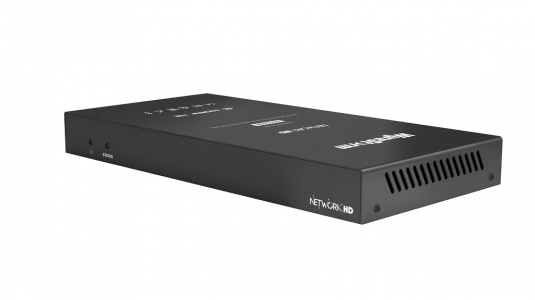

NHD-500-E-RX
Ref: WYRES-NHD500ERXThe NHD-500-E decoder enhance the NetworkHD 500 series by providing an economical 4K60 solution. The E variations remove many of the I/O found on the standard decoder and retain only the core functionalities that suite most applications. This helps avoid an over-specified hardware solution while still offering interoperability between all other 500 series components, enabling system designs to be better tailored to exact needs.
Price on request
I'm interested
Sujeito a confirmação de stock
Compare
Share
Features

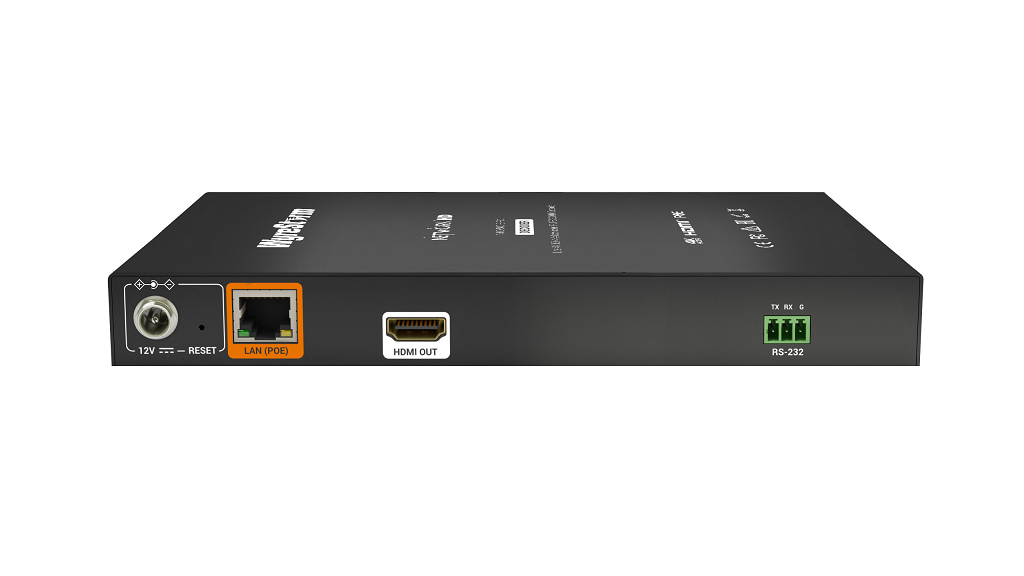

- Inputs/Outputs: 1x HDMI 2.0b Output
- Video Resolution (Max)
- 4096x2160p @ 60Hz 8bit 4:4:4 or RGB
- 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
- 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
- 1920x1080p @60Hz 12bit
- Audio Formats:
- HDMI passthrough: up to Dolby Atmos & DTS:X
- ARC: up to Dolby Digital Plus 5.1 or DTS 5.1
- Supported Standards: RGB | DCI | BT.2020
- Maximum Pixel Clock: 600Mhz
- Output Video Encoding: JPEG 2000
For more information check the TechSheet.
