Unite AP4 (EU)

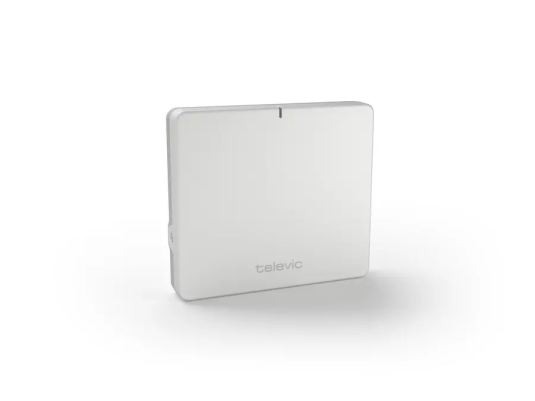

Ref: TELEV-71.98.4030 EAN: 71.98.4030The Unite AP4 access point is a multifunctional device with various applications such as interpreting, assistive listening and wireless microphone. With one Unite access point, four audio channels can be wirelessly transmitted. For a maximum of 32 channels, eight Unite AP4 can be synchronized in one network. Depending on the configuration, the device works as a transmitter (Broadcast mode) or a receiver with back (Full Duplex mode). One or more Unite AP4 devices can be configured using the free Unite Manager PC software. This also enables additional functionalities in the Unite network such as monitoring, maintenance, comprehensive configuration, pairing and setup of transmitters, receivers, chargers and Unite AP4 access points.
Features
- Frequency: 1,880 to 1,900 MHz
DECT transmission power Up to 250 mW (peak), depending on the country
DECT operating range Up to 300 m outside (line of sight); the actual operating range depends upon the RF output settings, the surroundings, the signal absorption, signal reflection and signal interference
RF coverage Up to 10,000 m2; the actual coverage depends upon the RF output settings, the surroundings, the signal absorption, signal reflection and signal interference
Audio bandwidth High quality (HD) 50 Hz - 14 kHz (-3 dB)
Operating mode Broadcast (4 channels)
Encryption AES-256 bit encryption
Antenna Diversity, internal
For more information check the TechSheet.
