DCM1

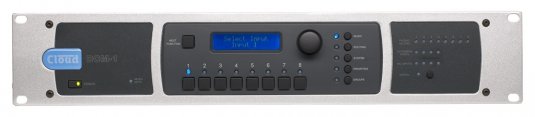

Ref: CLOUD-DCM1 EAN: CLOUD-DCM1The Cloud DCM1 Digitally Controlled Zone Mixer provides any space-conscious sound installation with a high level of flexibility, but without the need of a PC to set-up. It is ideal for contractors/installers who require flexible routing of line & mic signals.It is an analogue zoner with a simple-to-use digital control interface which can be controlled remotely via multiple LCD digital controllers. Optional active input modules extend the flexibility further. The DCM1 is Cloud`s first ever microprocessor controlled multi zoner.With traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control the DCM1 has the traditional simplicity of Cloud products, with far greater functionality.
Features

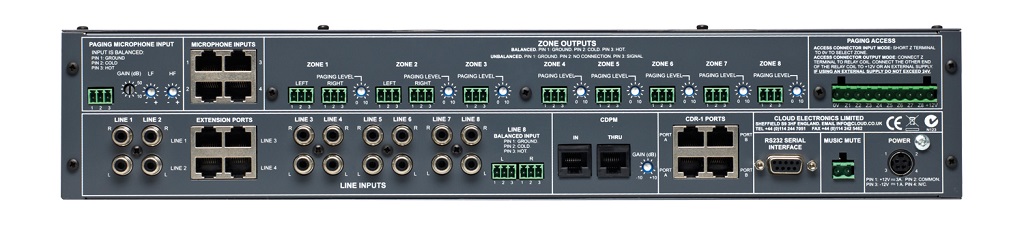

- 8 Stereo Line Inputs (1 Balanced)
- 8 Balanced Line Outputs (2 Stereo + 6 Mono)
- 4 Dedicated Ports for Optional Line Inputs (LE-1)
- 4 Dedicated Ports for Optional Mic Inputs (ME-1)
- Mic Paging to all Zones with Fully Programmable Override Logic
- Seperate Analogue Paging Mic Input with Contact Closure Zone Selection
- Configurable Multiple Remote Controls
- 4 Definable Zone Group Options
- EQ can be set by Remote Controls
- Configurable Line Priority by zone
- Remote Active Line and Mic Modules (LE-1, ME-1 & BE-1)
- RS232 Interface for AMX/Crestron
- Accepts BOSE & Amina EQ Cards per Zone
- No PC Required but Optional Set/Back GUI Utility
For more information check the TechSheet.
