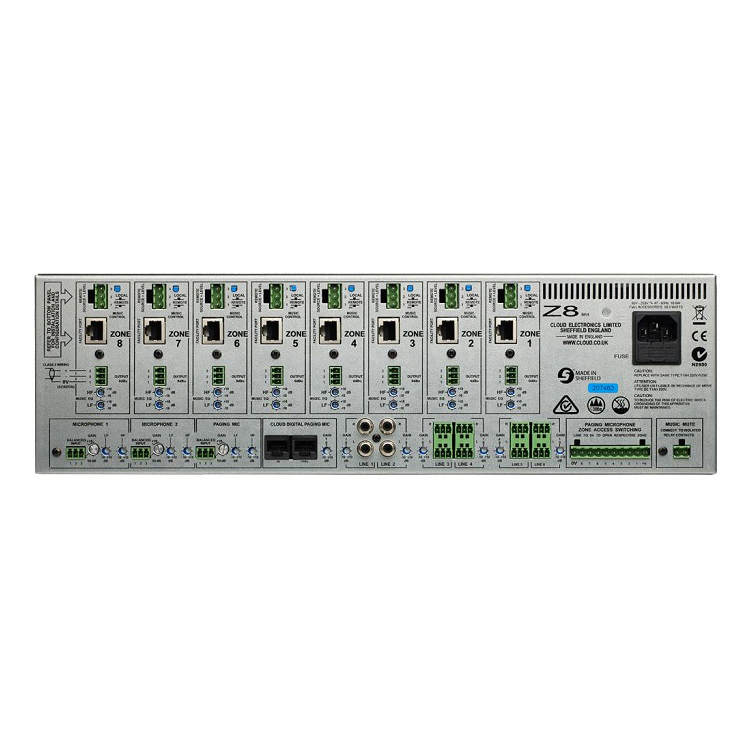

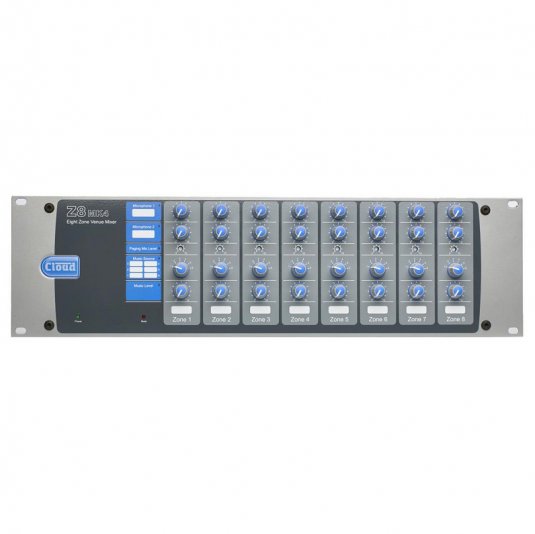

Z8MK4
Ref: CLOUD-Z8MK4 EAN: CLOUD-Z8MK4The new Z8MK4 is the latest generation of the ever popular Z-Series Venue Zone Mixer. The latest upgrades include a number of new features which make the Z8MK4 even more flexible and installer friendly.A new Universal Power Supply (85-254v) allows the Z8MK4 to be installed anywhere in the world, regardless of mains supply. The new up-rated power supply also provides increased output to support connection of up to 600mA of internal accessories such as EQ cards and external devices such as LM-2 Line/Mic/Remote Mixer Modules and Paging Consoles. The addition of a new RJ45 THRU/IN terminals allows for the simple connection of Cloud Digital Paging Microphones and the addition of four balanced inputs add to the flexibility and increased installer friendliness.
Features
- 8 Zone Mono Mixer
- NEW Digital Paging Interface for PM Paging Mics with IN/THRU Connections for Multi Mixer Configuration
- NEW Digital Switch Mode Power Supply (600mA Input Optional Paging & Message Announcer (PM-4SA)
- NEW Lines 1-6 now 2 x Unbalanced on PHONO + 4 x Balanced on Phoenix 3pin 3.5mm connectors
- Line 6 priority, can be selected on a Zone by Zone basis
- Optional Facility input plates on all zones (LM-2/A, B&W)
- Zone Music Level and Source Selection via RSL-6/A (B&W) or RL-1/A (B&W) Wall Remotes
- 2 Mic Inputs with Volume Controls
- Input for Paging Mic with Priority and Zone Selection
- Separate EQ for Mic and Music
- All Mics have Priority over Music
- Fire Alarm Music Mute Interface
- Optional custom equalizer modules for various loudspeakers brands can be fitted to any independent zone
For more information check the TechSheet.
